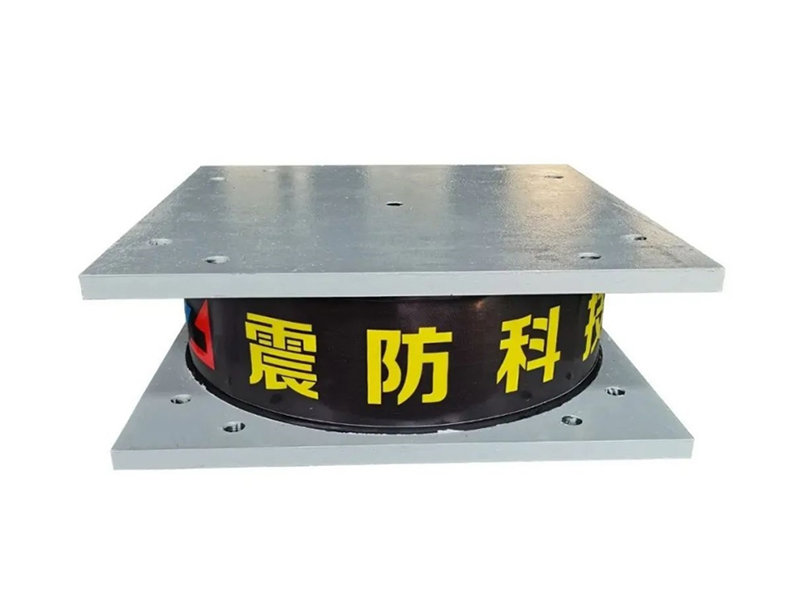

LNR(linear rubber bearing):LNR-Ⅰ、LNR-Ⅱ

The product is manufactured in accordance with EN15129 standard.

Natural rubber bearing (LNR) linear natural rubber bearing: a bearing that has no vertical lead core inside, and is formed by alternately stacking multiple layers of natural rubber and multiple layers of steel plates or other materials.

Marking method: The marking of bearing products should be composed of bearing type code, bearing shape and size.
Main parameter code: the circle is represented by the effective diameter (mm), and the rectangle is represented by the effective side length of the long side × the effective side length of the short side (mm).
Example 1: Natural rubber vibration isolation bearing, the effective diameter of the circular bearing is 500mm, marked as: LNR500.
Example 2: Natural rubber vibration isolation bearing, rectangular bearing size 500mm×600mm, marked as: LNR500×600.

Structural Requirements
Building seismic isolation rubber bearings with different usage requirements can have different lamination structures, sizes, manufacturing processes and formulation designs. Building seismic isolation rubber bearings should meet the required vertical bearing capacity, vertical and horizontal stiffness, horizontal deformation capacity, damping ratio and other performance requirements, and should have a service life of not less than 60 years.

Features of LNR Horizontal Force Dispersion Rubber Bearings
1) It has a good ability to adapt to the free expansion and rotation of the beam body;
2) It can meet the requirements of large shear displacement under the action of temperature change and earthquake, and the integrity of the bearing is good;
3) The bearing is effectively connected with the main girder and the bridge pier, and each pier bears the force together, especially for the curved girder bridge, the horizontal force dispersion effect is good:
4) Strong recovery ability, no residual deformation after large displacement shear deformation, and small change in characteristics;
5) Good creep characteristics and stable performance;
6) The surface of the bearing is covered with a rubber layer to protect the internal rubber from the influence of ozone, ultraviolet rays, etc., and has better aging resistance;
7) Easy to install, maintain, repair and replace.
Contact Us
  • Building isolation products
    Building Natural Rubber Bearing Type II ( LNR-II ) Building Natural Rubber Bearing TypeⅠ( LNR-Ⅰ)
    Features: Superior performance, longer life, upgraded version Features: Classic style, worth having
    Specification: LRB/LNR-Ⅱ type (diameter: 200~ 1500mm) Specification: LRB/LNR-Ⅰtype (diameter: 200~ 1500mm)


    Product Specifications and Parameters of Type II Building Seismic Isolation Rubber Bearings

    Table 4 Mechanical properties and specifications of lead rubber bearings (G=0.392MPa)

    Category

    unit

    LNR

    1500

    LNR

    1400

    LNR

    1300

    LNR

    1200

    LNR

    1100

    LNR

    1000

    LNR

    900

    LNR

    800

    LNR

    700

    LNR

    600

    LNR

    500

    LNR

    400

    LNR

    300

    Effective diameter

    mm

    1500

    1400

    1300

    1200

    1100

    1000

    900

    800

    700

    600

    500

    400

    300

    First shape factor S1

    /

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    Second shape factor S2

    /

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    Vertical stiffness (Kv)

    kN/mm

    7500

    6900

    6100

    4700

    4000

    3900

    3300

    2700

    2350

    1800

    1500

    1200

    550

    Equivalent horizontal stiffness 100%

    kN/mm

    2.709

    2.361

    2.055

    1.939

    1.862

    1.688

    1.539

    1.388

    1.196

    0.998

    0.868

    0.668

    0.501

    Total thickness of rubber layer

    mm

    240

    240

    240

    220

    204

    186

    167

    149

    130

    112

    94

    75

    58


    Table
    Mechanical properties and specifications of lead rubber bearings (G=0.490MPa)

    Category

    unit

    LNR

    1500

    LNR

    1400

    LNR

    1300

    LNR

    1200

    LNR

    1100

    LNR

    1000

    LNR

    900

    LNR

    800

    LNR

    700

    LNR

    600

    LNR

    500

    LNR

    400

    LNR

    300

    Effective diameter

    mm

    1500

    1400

    1300

    1200

    1100

    1000

    900

    800

    700

    600

    500

    400

    300

    First shape factor S1

    /

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    second shape factor S2

    /

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    Vertical stiffness (Kv)

    kN/mm

    7600

    7050

    6200

    4900

    4100

    4000

    3400

    2800

    2500

    1900

    1600

    1300

    650

    Equivalent horizontal stiffness 100%

    kN/mm

    3.339

    2.838

    2.519

    2.358

    2.262

    2.098

    1.901

    1.696

    1.515

    1.236

    1.089

    0.881

    0.595

    Total thickness of rubber layer

    mm

    240

    240

    240

    220

    204

    186

    167

    149

    130

    112

    94

    75

    58


    Table
    Mechanical properties and specifications of lead rubber bearings (G=0.343MPa)

    Category

    unit

    LNR

    1500

    LNR

    1400

    LNR

    1300

    LNR

    1200

    LNR

    1100

    LNR

    1000

    LNR

    9 00

    LNR

    800

    LNR

    700

    LNR

    600

    LNR

    500

    LNR

    400

    LNR

    300

    Effective diameter

    mm

    1500

    1400

    1300

    1200

    1100

    1000

    900

    800

    700

    600

    500

    400

    300

    First shape factor SI

    /

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    ≥15

    second shape factor S2

    /

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    ≥5

    Vertical stiffness (Kv)

    kN/mm

    7400

    6800

    6000

    4600

    3900

    3800

    3200

    2600

    2250

    1800

    1400

    1100

    500

    Equivalent horizontal stiffness (Kh) 10

    kN/mm

    2.386

    2.166

    1.785

    1.622

    1.598

    1.509

    1.366

    1.189

    1.169

    0.882

    0.739

    0.603

    0.455

    Total thickness of rubber layer

    mm

    240

    240

    240

    220

    204

    186

    167

    149

    130

    112

    94

    75

    58
